react-native实现launchImage和splash-screen

为什么实现splashScreen

对于ios版本, 点击桌面的app icon后, 自动加载launchImage, launchImage加载完毕后就会进入应用首屏, 虽然launchImage加载持续时间可以手动设置, 但是却没有关闭launchImage的api, 如果希望在加载首屏前执行一些逻辑(例如, 网络请求一些数据), 在这些逻辑执行完毕之前用户看不见首屏, 仍然只能看到lauchImage展现的部分, 是无法实现的. 因此, ios需要自行实现类似android的splashScreen.
对于android版本, 源生支持实现splashScreen, 但要实现类似ios的launchImage效果, 需要对AndroidManifest. xml文件进行微调.

ios实现launchImage

ios源生支持实现launchImage, 可以点这里了解, 这里就不展开了.

ios实现splashScreen

安装组件react-native-splashscreen npm install @remobile/react-native-splashscreen --save
将RCTSplashScreen.xcodeproj拖入你的Xode工程的Libraries下.
点击你的主工程文件, 选择Build Phases, 并在工程Products目录下找到RCTSplashScreen.xcodeproj, 将其中包含的libRCTSplashScreen.a拖入.
在Builder Settings中找到Header Search Paths, 确认其中包含$(SRCROOT)/../../../react-native/React(recursive).
在Builder Settings中找到Header Search Paths, 确认其中包含$(SRCROOT)/../node_modules/@remobile/react-native-splashscreen/ios/RCTSplashScreen
删除工程里的LaunchScreen.xib
将组件中的SplashScreenResource目录拖入工程, 确认类型是groups, 并且Add Targets选中, 如果希望使用不同的splash图片, 可以替换splash.png
工程里找到AppDelegate.m

...
#import "RCTSplashScreen.h" //<--- 新增导入
...
RCTRootView *rootView = [[RCTRootView alloc] initWithBundleURL:jsCodeLocation
                                                      moduleName:@"KitchenSink"
                                               initialProperties:nil
                                                   launchOptions:launchOptions];

  [RCTSplashScreen show:rootView]; //<--- 新增显示splashScreen

  self.window = [[UIWindow alloc] initWithFrame:[UIScreen mainScreen].bounds];
  UIViewController *rootViewController = [[UIViewController alloc] init];
  rootViewController.view = rootView;
  self.window.rootViewController = rootViewController;
  [self.window makeKeyAndVisible];
  return YES;

android实现launchImage

准备一张背景图片, 自定义命名(比如命名为splash), 自己选择图片格式, 放在drawable目录下
配置strings.xml

<resources>

    <!--&lt;!&ndash; Base application theme. &ndash;&gt;-->
    <!--<style name="AppTheme" parent="Theme.AppCompat.Light.NoActionBar">-->
        <!--&lt;!&ndash; Customize your theme here. &ndash;&gt;-->
    <!--</style>-->

    <style name="AppTheme" parent="@android:style/Theme.Black">
        <item name="android:windowBackground">@drawable/splash</item>
        <item name="android:windowNoTitle">true</item>
        <item name="android:windowFullscreen">true</item>
        <item name="android:windowContentOverlay">@null</item>
    </style>
</resources>

配置AndroidManifest.xml

<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.helloreactnative"
    android:versionCode="1"
    android:versionName="1.0">

    <uses-permission android:name="android.permission.INTERNET" />
    <uses-permission android:name="android.permission.SYSTEM_ALERT_WINDOW"/>

    <uses-sdk
        android:minSdkVersion="16"
        android:targetSdkVersion="22" />

    <application
      android:allowBackup="true"
      android:label="@string/app_name"
      android:icon="@mipmap/ic_launcher">
      <activity
        android:name=".MainActivity"
        android:label="@string/app_name"
        android:configChanges="keyboard|keyboardHidden|orientation|screenSize"
          android:theme="@style/AppTheme">
        <intent-filter>
            <action android:name="android.intent.action.MAIN" />
            <category android:name="android.intent.category.LAUNCHER" />
        </intent-filter>
      </activity>
      <activity android:name="com.facebook.react.devsupport.DevSettingsActivity" />
    </application>

</manifest>

android实现splashScreen

安装组件react-native-splashscreen npm install @remobile/react-native-splashscreen --save
在工程中找到android/settings.gradle, 加入如下:

...
include ':react-native-splashscreen'
project(':react-native-splashscreen').projectDir = new File(rootProject.projectDir, '../node_modules/@remobile/react-native-splashscreen/android')

在工程中找到android/app/build.gradle, 加入如下:

...
dependencies {
    ...
    compile project(':react-native-splashscreen')
}

如果希望使用不同的splash图片, 替换res/drawable/splash.png
在MainActivity.java中注册模块

import com.remobile.splashscreen.*;  // <--- 导入包

public class MainActivity extends Activity implements DefaultHardwareBackBtnHandler {
  ......
  @Override
  protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);

    mReactInstanceManager = ReactInstanceManager.builder()
      .setApplication(getApplication())
      .setBundleAssetName("index.android.bundle")
      .setJSMainModuleName("index.android")
      .addPackage(new MainReactPackage())
      .addPackage(new RCTSplashScreenPackage(this))              // <------ 加入splashScreen的package
      .setUseDeveloperSupport(BuildConfig.DEBUG)
      .setInitialLifecycleState(LifecycleState.RESUMED)
      .build();

    mReactRootView.startReactApplication(mReactInstanceManager, "ExampleRN", null);

    setContentView(mReactRootView);
  }

  ......
}

效果展示

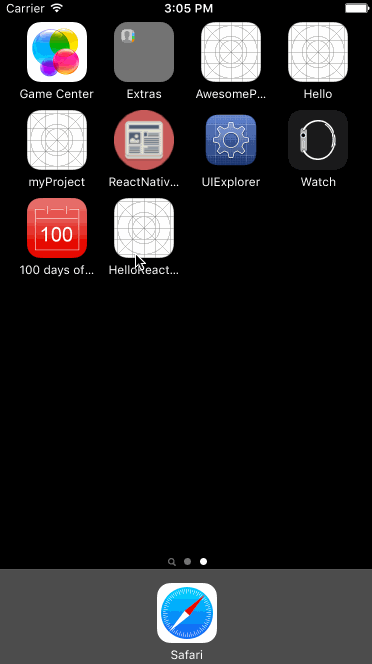

ios-splash-screen

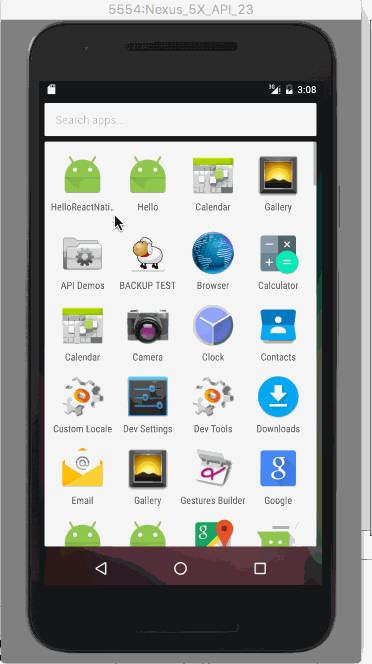

android-splash-screen

react-native中关闭splashScreen

'use strict';
var React = require('react-native');
var {
    AppRegistry,
    View,
    Text,
} = React;

var SplashScreen = require('@remobile/react-native-splashscreen');  //导入包

var KitchenSink = React.createClass({
    componentDidMount: function() {
        SplashScreen.hide();    //调用api隐藏splashScreen
    },
    render() {
        return(
            <View>
                <Text>
                    fangyunjiang is a good developer!
                </Text>
            </View>
        );
    }
});

AppRegistry.registerComponent('KitchenSink', () => KitchenSink);
